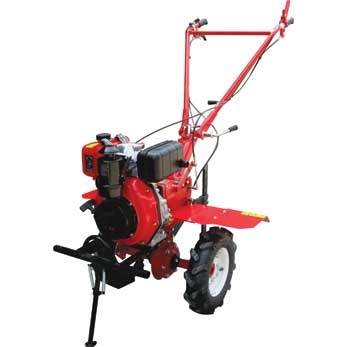

ASPEE ROTARY TILLER with diesel engine is equipped with four stroke 296 cc Diesel Engine with recoil starter & PTO shaft for power transmission from the engine to the gearbox. Sturdy carbon steel blades for tilling purpose, adjustable handle bars for up-down & 360 ° adjustments. Rein forced blade guard, Provided gearbox with forward, first, second & reverse gear system for power transmission .Transportation wheel is provided.

Special Instructions

  • Powerful 4-stroke 296 cc diesel engine having 6 HP power output.
  • Cost effective, labour and time saving mechanized device.
  • Gearbox with forward, first, second & reverse gear system is provided for power transmission.
  • Effectively uproots weeds & gives effective tillage.
  • High carbon steel blade provided with protection disc reinforced blade guard.
  • Transportation wheel is provided for transportation purpose.
  • Efficient in fuel consumption.
  • Sturdy/rugged construction.
  • Engine produces high torque for better field performance.


Technical Specifications

  • Model: RT/DE105
  • Engine Model: 178 Diesel Engine
  • Engine Type: 4-stroke  Diesel Engine
  • Horsepower: 6
  • Displacement: 296 cc
  • Fuel Tank Capacity: 3.5 Lit.
  • Lube Oil Capacity: 3.5 Lit.
  • Starting System Recoil: Start
  • Transmission: Gear
  • Gear Shifting: 2,1,0,-1
  • Clutch: Friction plate type
  • P.T.O: Double
  • Handle Adjustment: Up and Down, 360° adjustable
  • Working Depth: 150 mm
  • Working Width: 600 ~ 1000 mm
  • Blade Type: 32 pcs Blade, 8 set
