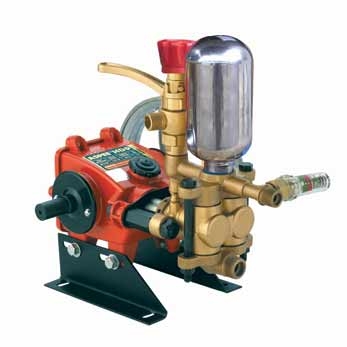

ASPEE-HDP horizontal duplex piston power sprayer unit, developing 400 PSI pressure and giving free discharge of 24 lpm at 950 rpm. Supplied with pulley, pressure vessel, pressure gauge, By-pass cum pressure regulator valve (CVA), 3 meter long By-pass hose & suction hose with strainer, couplings for delivery hose
Special Instructions
- Portable, compact, light weight
- Stainless steel piston
- Delivery capacity 24 lit/min at 950 rpm
- Develops 400 psi pressure max
- Needs 3 hp engine or electric motor
- Sprayer can be used for spraying with 2 spray lances or spray guns
- All working parts, connecting rods, crank shaft & bearing are lubricated by oil bath
