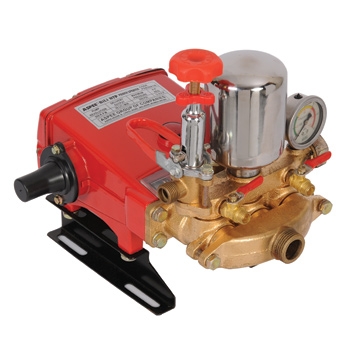

BILI HTP POWER SPRAYER (PSB30A1NB)

ASPEE-BILI HTP horizontal triplex power sprayer unit, developing up to 500 psi (35 bar) pressure and giving free discharge of 30 lit/min at 900 rpm. Sprayer Supplied with pulley, pressure vessel, pressure indicator, by pass cum pressure regulator valve, 3 meter long by-pass & suction hose with strainer, couplings for delivery hose

Special Instructions

  • Heavy duty & efficient sprayer
  • Heavy duty industrial quality brass stamping material
  • Stainless steel piston
  • All working parts are lubricated by oil bath
  • Aluminum pressure die casting connecting Rod
  • Control valve assly. With pressure regulator, by-pass
  • Pulsation free spray
  • Develop pressure up to 500 psi max.
  • Sturdy/rugged construction
Category:

Description

Technical Specifications

  • Model: PSB30A1NB
  • Material of Construction: BRASS
  • Suction capacity (lpm): 30
  • Normal working pressure: 100 – 200 PSI
  • Max. Pressure: 500 PSI
  • Pump revolution: 950
  • Power (hp): 3 ~ 4 HP
  • L X W X H (in mm): 337 X 305 X 295
  • Weight (without oil): 7.7 kg (approx)
