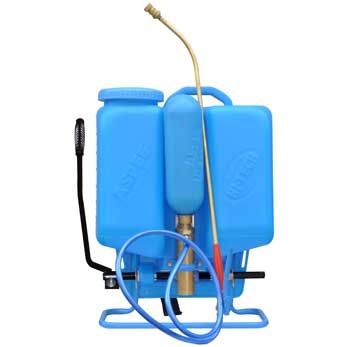

16 lit. capacity high density polyethylene tank with frame directly moulded to tank, pressure chamber and pump fitted outside the tank with 2 nos. adjustable shoulder straps without cushions complete with 110 cm long delivery hose and spray lance VMND consisting of trigger cut off, 60 cm long extension rod one end bent as gooseneck and duro mist spray nozzle with stainless steel disc and 1 set of packing gaskets, conforming to IS specification and with ISI mark.

Special Instructions

  • Ergonomically designed rest comfortably on operator’s back.
  • Develops sufficient and continuous pressure.
  • Pump is centrally blocked and easy for operation as balance is perfectly maintained.
  • Frame directly moulded to the tank.
  • Bigger faller hole with strainer allows filling spray solution without spilling.
  • Right or left hand operation.
  • 16 ltr. tank capacity made from H.D.P.E.


Technical Specifications

  • Model: DR 200
  • Tank: H.D.P.E.
  • Tank Capacity: 16 Ltr.
  • Pressure Vessel: H.D.P.E.
  • Spray Lance/Lance Pipe: Brass Pipe with Trigger Cut Off As per customers requirement
  • L x W x H (in mm): 370 x 150 x 510
  • Weight: 4.5 kg (approx)
